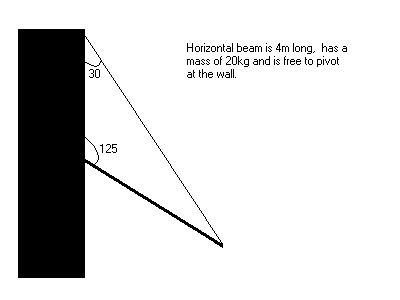

1. The system pictured above is in static equilibrium. The pole is free to pivot where it touches the wall. Find the force at the wall and the tension in the supporting cable. This is similar to the horizontal and vertical cables in your experiment.






In preparation for the lab, calculate the forces T, V and H which are holding a uniform bar of mass m in equilibrium. Express T, V and H in terms of the mass of the bar m and the two angles alpha and beta and the tension K= 1.96N.
Mass of the bar will be given in class (Sum the forces and the torques to zero and solve the resulting equations for the unknown forces in terms of the mass of the bar and the two angles.) SUBMIT YOUR WORK ELECTRONICALLY AND BRING IT IN ON PAPER ON FRIDAY MORNING.
